Groen Model DR18 Heat Exchanger

Groen Model DR18 Scraped Surface Heat Exchanger

- Used to cook caramel

- Built new in 1988

- Serial number 131214

- Up to 500lbs of caramel per hour

- 12" diameter x 18" long tube

- 304 stainless steel

- Agitator

- Heat surface area approx. 9.5 square feet

- (3) scrapers

- Internal rating 120psi at 353F

- Cover with 2.75" opening

- 2" outlet

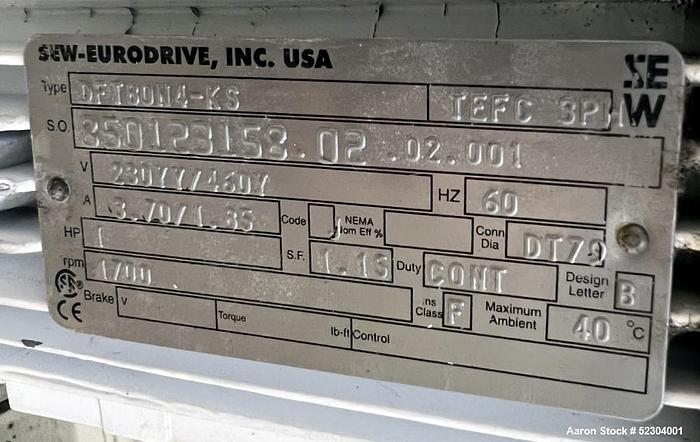

- Main drive 1HP 3/60/230-460v

- Waukesha Model 3 pump

- Pump motor 0.75HP 3/60/230-460v

- Blower

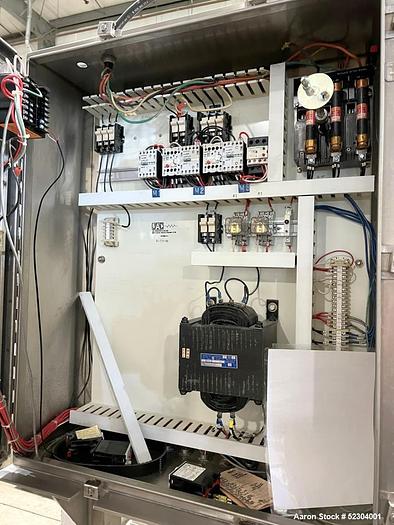

- Control panel
