NEW Genesis Stainless Steel Form, Fill, Seal with 14-Head Scale

NEW Genesis Stainless Steel Form, Fill, Seal with 14-Head Scale

Location:Texas

orCall 718-585-0200

Description

NEW Genesis Stainless Steel Form, Fill, Seal with 14-Head Scale

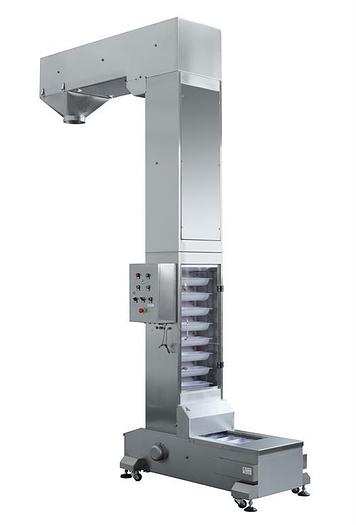

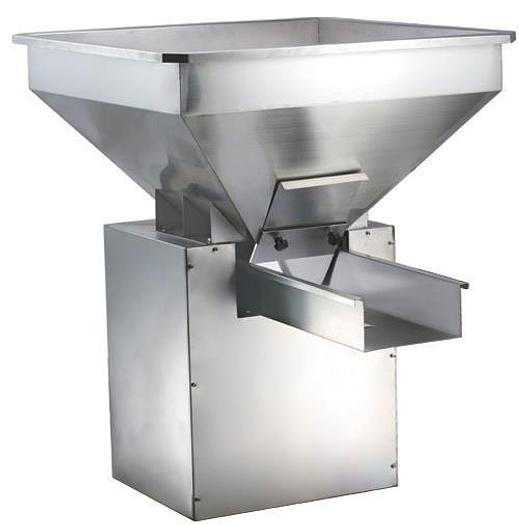

- Genesis Stainless Steel Bucket elevator with vibratory feeder with 2 liter buckets

5 cu/ft hopper with dimpled contact services

High level sensor controls for automatic start/stop

Automatic/manual controls

Dimpled 2 liter food grade plastic buckets

Stainless steel drive train

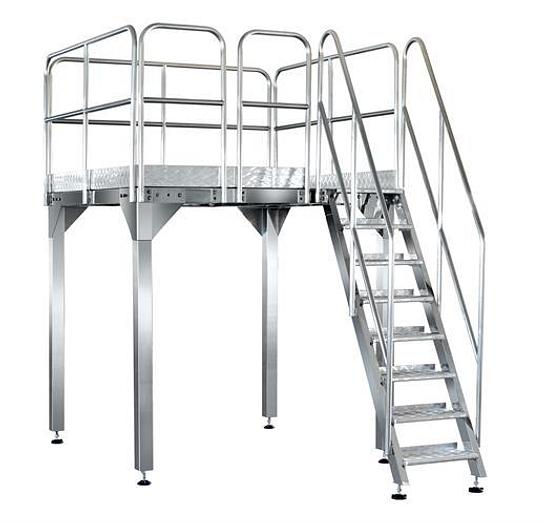

- Genesis Stainless Steel Platform for scale

Provides support and full access to the weigher and components

Stainless steel support frame

Solid welded construction

Aluminum decking attached with counter sunk screws

Stainless Steel Railing

One set of stainless steel stairs with safety rails

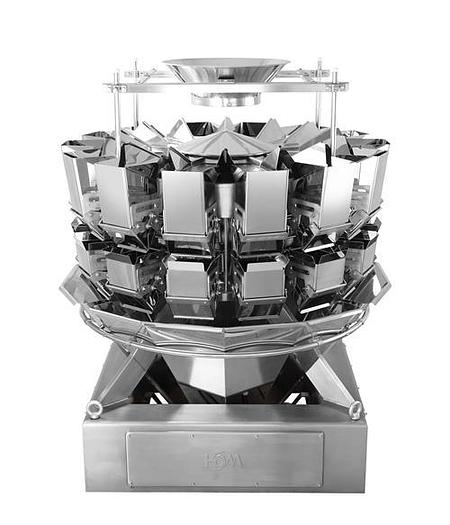

- High Dream Stainless Steel 14-head Dimpled Weigher

Model HDM-14-4-3-S

14 head scale with strain gauge load cell

14 feed buckets and 14 weigh buckets

All product handling parts dimpled

14 drive unit/weighing mechanism modules accurate to 0.1 gram

0 degree tilted linear pans

Vibratory center cone

Remote TFT color touchscreen display

100 product programs

Battery backup memory

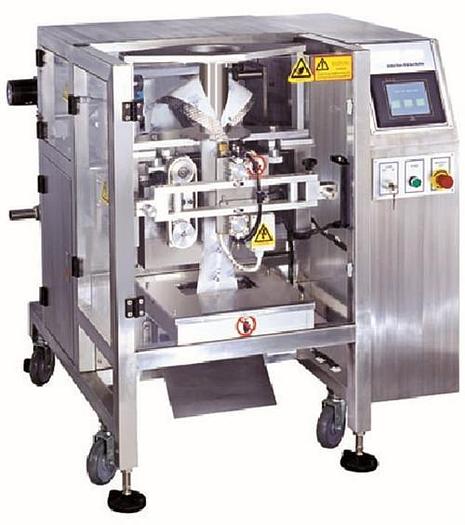

- Genesis Stainless Steel Vertical Form, Fill and Seal Machine

Model VFFS-400

Horizontal Seal actuator

Laminated Bag Capabilities:

Width = 2” – 7”

Length = 2” – 9”(Longer w/ Multiple Pull)

Maximum Roll Size 12” Diameter x 14.5” W

Horizontal Seal Actuator Including High Speed Dual Servo Motor Drive

Vertical Seal Actuator with Quick Release Swing Arm

Stainless Steel Construction with Welded Frame Including Leveling Feet & Casters

Stainless Steel Electrical Cabinet

Auto Positioning Belts

Automatic Film Detection & Tracking

Servo-Driven Film Advance Feed Pull System with Motorized Assist and Automatic Centering Film Spindle

Film Unwind Carriage Including Quick Thread Dancer

Film Mark & Registration Detection System

Out of Film Detection

Film Registration Roller for Optional Printer

One Roll Unwind Spindle With 3-Inch Manual Core Chucks

Splice Plate

Jaw Jam & Knife Inhibit Safety Feature

Resistance Sealing System Includes: Knife Cutoff, 0.5” Wide Seal Jaw Faces (Horizontal Serrations Provide Tear Notches to Assist Opening), Adjustable

Jaw Open Position

Electrical & Pneumatic Safety Interlocks

Polycarbonate Front and Side Doors Electrically Interlocked

7” Color Touch Screen

Mitsubishi PLC Controls


- Genesis Stainless Steel Vertical Form, Fill and Seal Machine

Model VFFS-620

Horizontal Seal actuator

Laminated Bag Capabilities:

Width = 3.5" to 12”

Length = 2” – 15.75”(Longer w/ Multiple Pull)

Maximum Roll Size 15” Diameter x 24.5” W

Horizontal Seal Actuator Including High Speed Dual Servo Motor Drive

Vertical Seal Actuator with Quick Release Swing Arm

Stainless Steel Construction with Welded Frame Including Leveling Feet & Casters

Stainless Steel Electrical Cabinet

Auto Positioning Belts

Automatic Film Detection & Tracking

Servo-Driven Film Advance Feed Pull System with Motorized Assist and Automatic Centering Film Spindle

Film Unwind Carriage Including Quick Thread Dancer

Film Mark & Registration Detection System

Out of Film Detection

Film Registration Roller for Optional Printer

One Roll Unwind Spindle With 3-Inch Manual Core Chucks

Splice Plate

Jaw Jam & Knife Inhibit Safety Feature

Resistance Sealing System Includes: Knife Cutoff, 0.5” Wide Seal Jaw Faces (Horizontal Serrations Provide Tear Notches to Assist Opening), Adjustable

Jaw Open Position

Electrical & Pneumatic Safety Interlocks

Polycarbonate Front and Side Doors Electrically Interlocked

7” Color Touch Screen

Mitsubishi PLC Controls

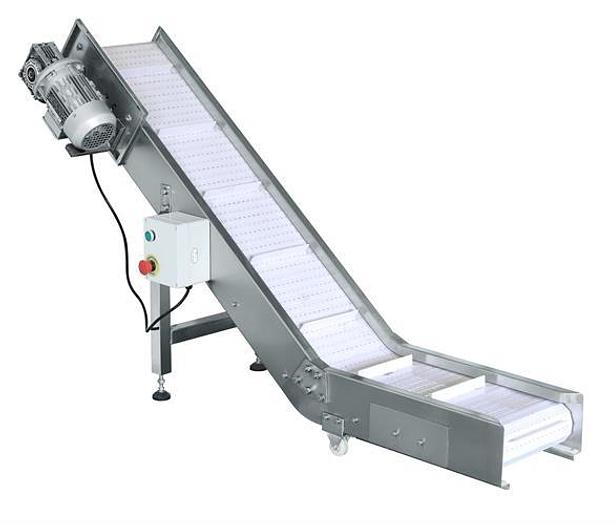

- Genesis Stainless Steel Take-Away Conveyor

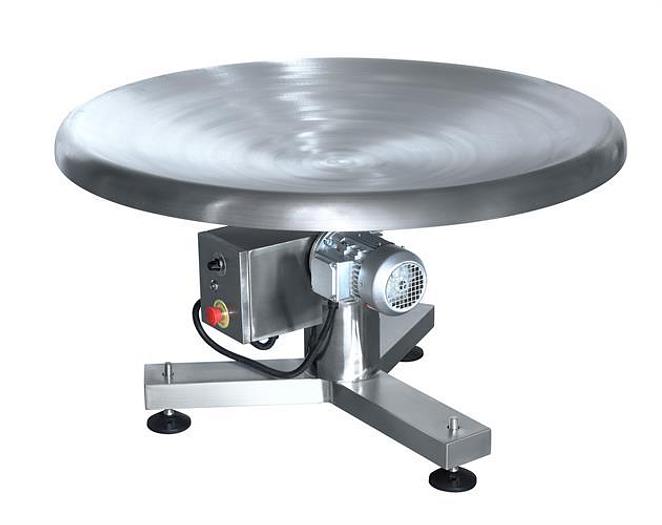

- Genesis Stainless Steel Collection Table

304 Stainless Steel Construction

47” Diameter

Concave Surface for Bags to Slide to Center

Allowing More Accumulation

No Pinch Points for Safer Operation

Variable Speed Operation

Maximum Load: 330 lbs


- Genesis Stainless Steel Fall Through Metal Detector

Stainless Steel Construction

Provides Signal to Stop Container Advancement Upon Metal Detection

Accuracy Up to 0.8mm FE (Product Dependent), 2.0mm SS and non-FE

(Product Dependent)

100 Product Programs

User Friendly Remote Color Touch Screen

Battery Back Up


Specifications

ManufacturerGENESIS
ConditionNew
Stock Number84832w
